PoE Switch DS-3E0520HP-E 16 port 10/100/1000 PoE Dual gigabit uplink - 225w PoE budget

PoE Switch DS-3E0520HP-E 16 port 10/100/1000 PoE Dual gigabit uplink - 225w PoE budget

Brand:Hikvision
Product Code: DS-3E0520HP-E
In Stock

Tags: POE, IP, POWER, SUPPLY, 16 PORT, HIKVISION, DS-3E0520HP-E

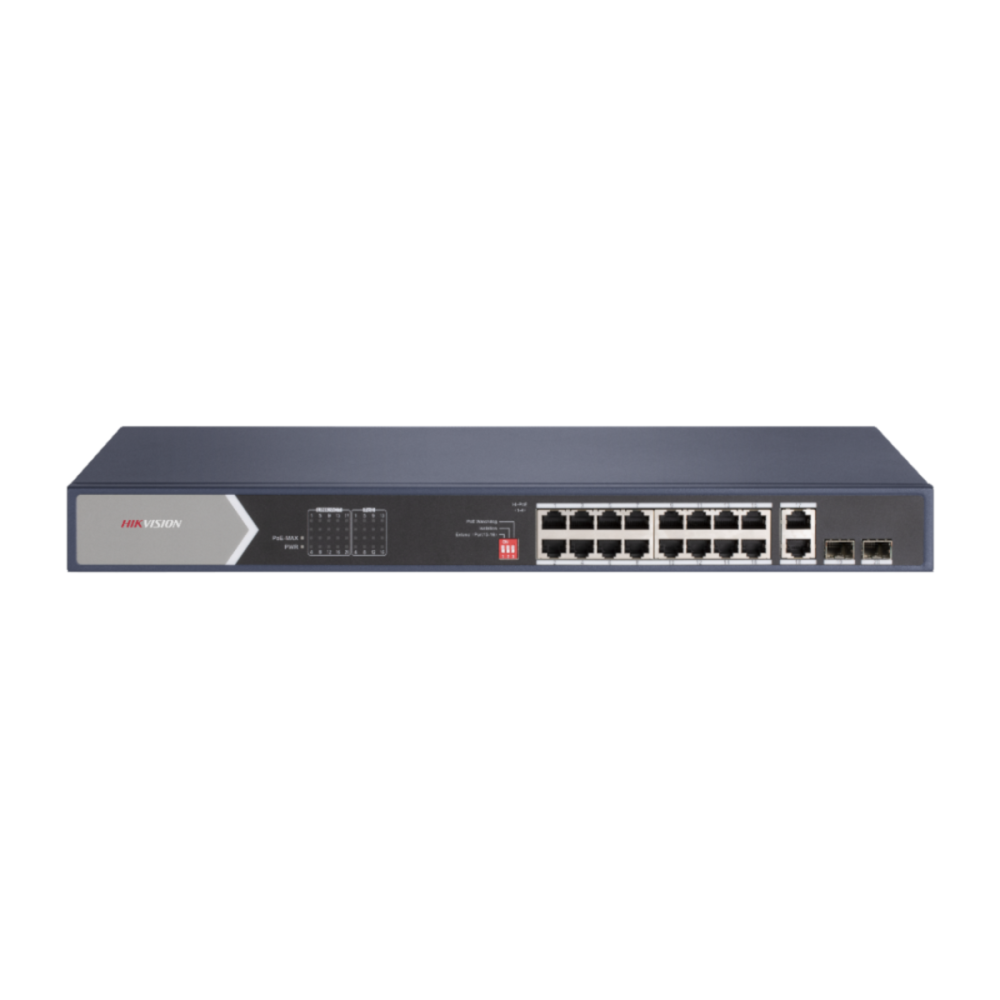

Hikvision DS-3E0520HP-E 16 port 10/100/1000 PoE + 2x uplink 10/100/1000 Ethernet/SFP uplink ports - INCLUDES RACKMOUNTS

DS-3E0520HP-E is a 16port switch with 16x 10/100/1000Mbps PoE ports which are unmanaged so it requires no configuration. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs).

Ports 1-4 support up to 90w Cameras - 5-16 support up to 30w - Ports 13-16 are Hi-PoE Long distance transmission ports up to 10mb data at up to 300m with cat6 cable or 200m cat5e solid copper (Max 7w

  • 12 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports.
  • IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
  • IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
  • 6 KV surge protection for PoE ports.
  • Up to 300 m long-range transmission.
  • PoE watchdog to auto detect and restart the cameras that do not respond.
  • Port isolation to improve network security.
  • Gigabit network access design.
  • Wire-speed forwarding.
  • Store-and-forward switching.
  • Solid high-strength metal shell.

For spec sheet click here
