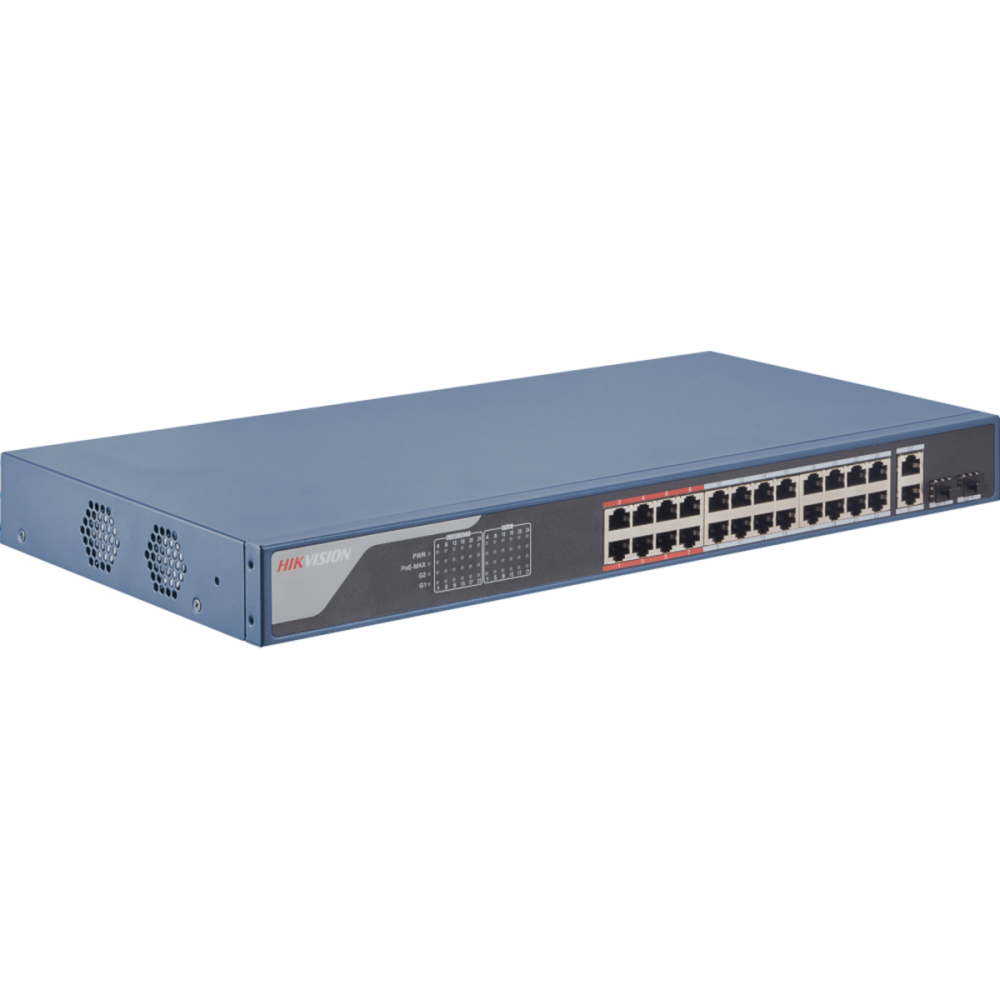

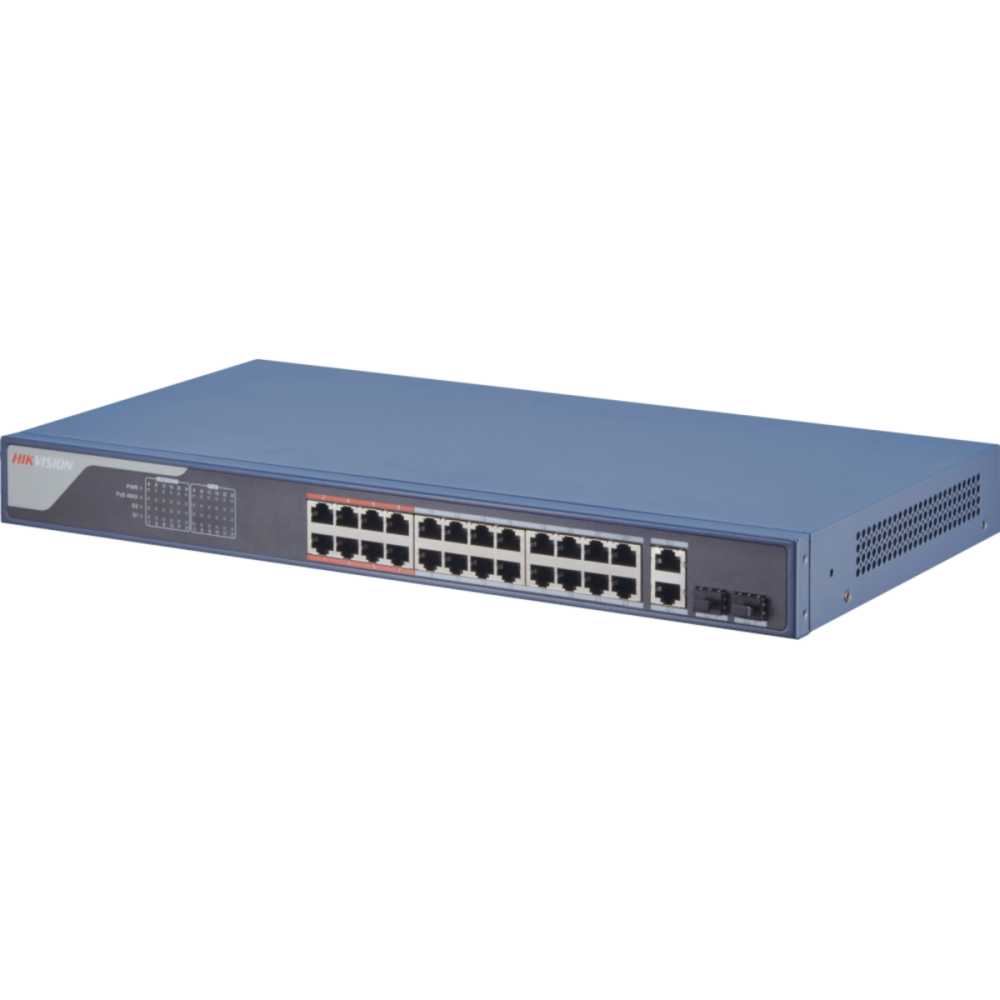

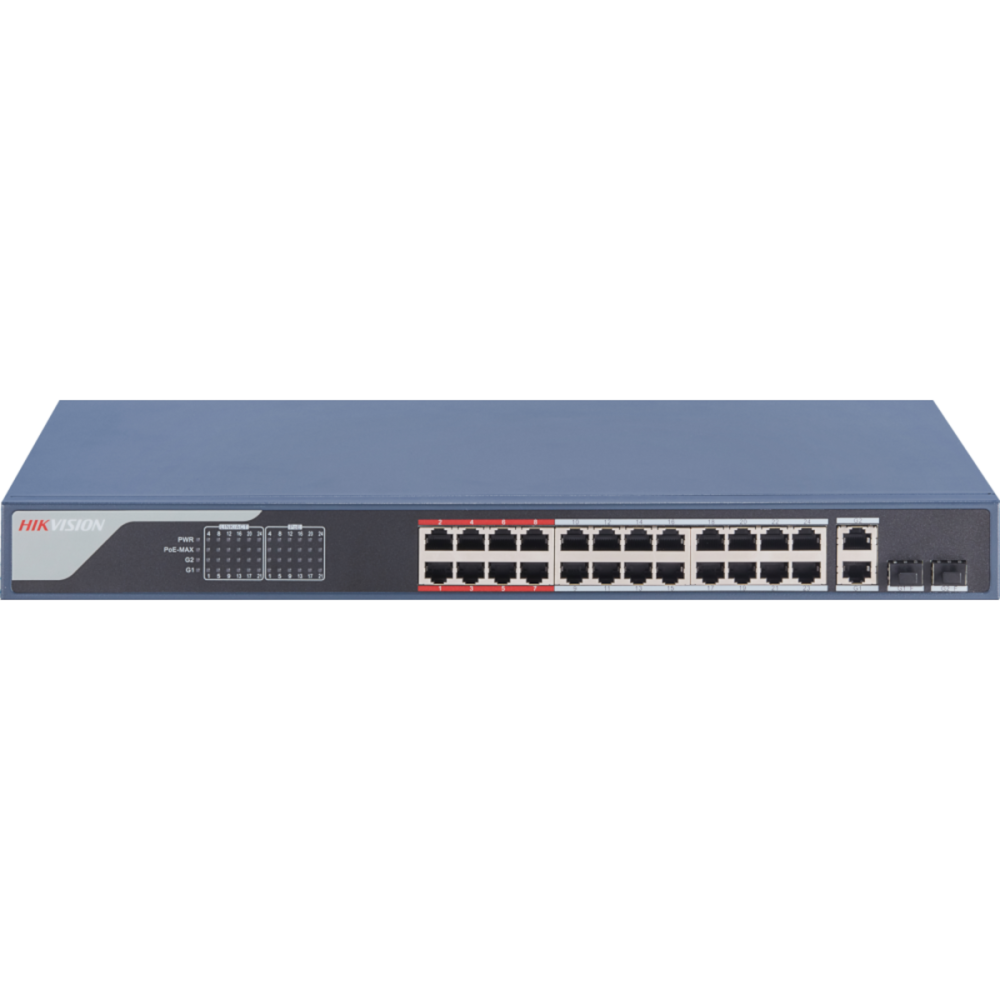

PoE Switch DS-3E1326P-EI 24 port 10/100 PoE Dual gigabit uplink - 370w PoE budget

PoE Switch DS-3E1326P-EI 24 port 10/100 PoE Dual gigabit uplink - 370w PoE budget

Brand:Hikvision
Product Code: DS-3E1326P-EI
In Stock

Tags: POE, IP, POWER, SUPPLY, 24 PORT, HIKVISION, DS-3E1326P-EI

Hikvision DS-3E1326P-EI 24 port 10/100 PoE + 2x uplink 10/100/1000 Ethernet/SFP uplink ports - INCLUDES RACKMOUNTS

DS-3E0326P-EI is a 24port switch with 24x 10/100Mbps PoE ports which are unmanaged so it requires no configuration. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as IP Cameras or IP Phones, etc

  • Transmission over 100m achievable at a reduced data rate
  • IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
  • 24 x 10/100Mbps - All ports allow up to 300m transmission at 802.3AF up to 15w  & 150m in 802.3AT up to 30w mode on solid copper cable (Cat5e 200m/ cat6 250m / cat7 300m)
  • 2 x Gigabit combo Ethernet/SFP ports
  • Provides up to 30 watts per PoE port up to 100m
  • PoE power budget 370W
  • 6 kV surge protection for PoE ports
  • IEEE 802.3x flow control support
  • Plug-and-play installation
  • 8.8 Gbps switching fabric
  • 4 Mbits RAM Data Cache Buffer
  • 16K MAC address entries

For spec sheet click here
